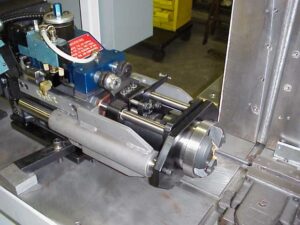

Air-Hydraulic Holomatics
Air powered thrust, patented pressure compensated hydraulic controlled. Simply adjustment. These quill style units are specifically made for endworking tools. Drills, reamers, taps, hones, etc., but they are completely customizable for your unique application. Whether an off-the-shelf unit or a fully custom unit, bring us your challenge and we’ll help provide a solution. With 1000’s of adaptations and sub-assemblies available.
Model 2497
The 4″ air-hydraulic Holomatic. Patented Pressure compensated feed valve, easy to use digital depth counter with
2497 4″ Air-hydraulic with advance feed and retract feed.
2498 4″ Air-hydraulic with advance feed only
2404 discontinued (old style, spare parts still available)
4″ stroke, 600# thrust advance, 380# thrust retract, 600lbs-in torque. Normally use these as pressure offset to help keep the internal tubes compressed for more stability. With a built in electrical interlock (switches), concentric construction, and easy to use adjustments. 3 1/2″ quill diameter, 190 IPM rapid, rapid advance 0-4″, depth repeatability +-.001″ (with short dwell), 4 1/2″ centerline height.
Search entire site for “8301”
Model 2697
The 6″ air-hydraulic Holomatic. Patented Pressure compensated feed valve, easy to use digital depth counter with
2697 6″ Air-hydraulic with advance feed and retract feed.
2698 6″ Air-hydraulic with advance feed only
2604 discontinued (old style, spare parts still available)
6″ stroke, 600# thrust advance, 380# thrust retract, 600lbs-in torque. Normally use these as pressure offset to help keep the internal tubes compressed for more stability. With a built in electrical interlock (switches), concentric construction, and easy to use adjustments. 3 1/2″ quill diameter, 190 IPM rapid, rapid advance 0-4″, depth repeatability +-.001″ (with short dwell), 4 1/2″ centerline height.
Search entire site for “8301”
Model 2197
The 10″ air-hydraulic Holomatic. Patented Pressure compensated feed valve, easy to use digital depth counter with
2197 10″ Air-hydraulic with advance feed and retract feed.
2198 10″ Air-hydraulic with advance feed only
10″ stroke, 600# thrust advance, 380# thrust retract, 600lbs-in torque. Normally use these as pressure offset to help keep the internal tubes compressed for more stability. With a built in electrical interlock (switches), concentric construction, and easy to use adjustments. 3 1/2″ quill diameter, 190 IPM rapid, rapid advance 0-4″, depth repeatability +-.001″ (with short dwell), 4 1/2″ centerline height.
Search entire site for “8301”
